VIAIR - Mission Critical High Flow Onboard Air System
SKU 91594
$858.95
Sold out
Product Details
Brand:
Viair
UPC:
50005
For up to 40″ Tires
P/N 50007 – 150 PSI / 4.55 CFM

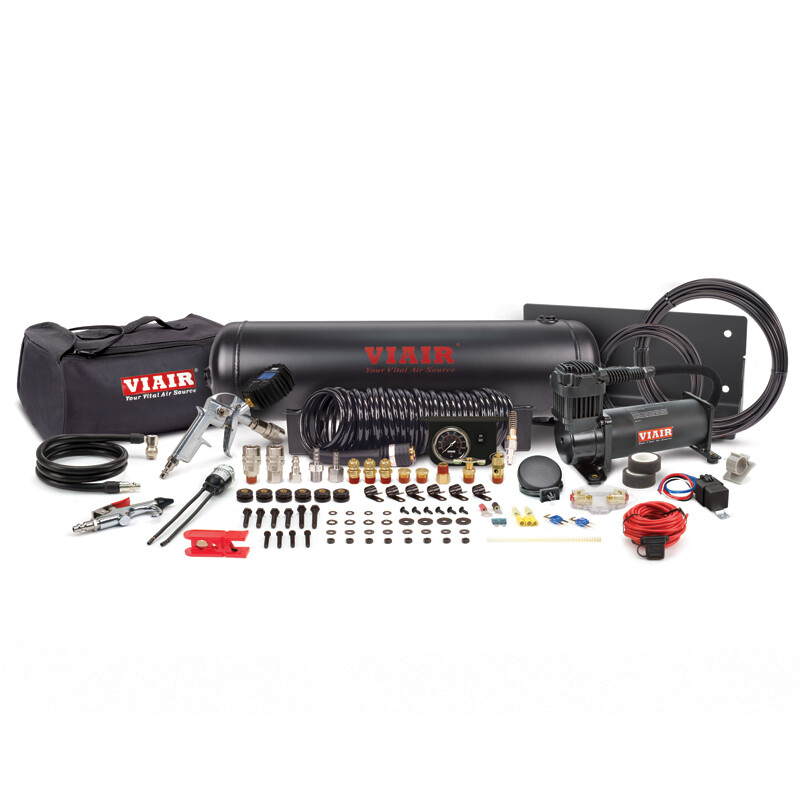

* Combined CFMVIAIR’s Mission Critical High Flow Onboard Air System is a pre-packaged compressed air solution that features two 33% duty cycle Chrome 400C compressors, a 2.0 gallon air tank, 180 PSI digital tire inflation gun, and all necessary components needed to install a working system, useful for multiple pneumatic applications.
| FEATURES |
|---|
| – 400C Chrome 150 PSI VIAIR Compressors |
| – 2.0 Gallon Matte Black VIAIR Air Tank (150 PSI) |
| – Illuminated Dash Panel Gauge Kit, Black Face 150 PSI |
| – Sealed Pressure Switch (110 PSI on, 145 PSI off) |
| – Sealed 40-Amp 4-prong Relay |
| – Mini ANL Fuse Holder w/ 80-amp Fuse |
| – Tire Inflation Gun with 180 PSI Digital Gauge |
| – 30ft. Coil Hose with Quick Connect and Stud |
| – 45° Extended Reach Dually Chuck |
| – 90° 40in. Twist-On Air Hose Chuck |
| – Rubber Tipped Blow Gun |
| – 1/4″ 175 PSI Safety Valve |
| – 1/4″ Drain Cock |
| – 1/4″ NPT (M) Quick Connect Coupler |
| – 1/4″ NPT (F) Quick Connect Coupler |
| – 1/4″ NPT (F) Quick Connect Stud |
| – 1/4″ Compression Fittings |
| – 1/4″ NPT Plugs Kit |
| – 1/4″ Air Line (15ft.) |
| – Stainless Steel Air Line Cutter |
| – Air Filter Housing w/ Replacement Air Filter Elements |
| – Heavy Duty Universal Mounting Bracket |
| – 20ft. Freeze Resistant 12-Gauge Wire w/ Inline Fuse Holder |
| – VIAIR Storage Bag |
| SPECIFICATIONS |
|---|
| – 12-Volt |
| – Permanent Magnetic Motor |
| – Duty Cycle: 100% @ 100 PSI |
| – Max. Working Pressure: 150 PSI |
| – Max. Amp Draw: 44 Amps |
| – Ingress Protection Rating: IP67 |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
All Fittings are NPT rated unless otherwise noted. Wiring harness NOT included..
Please Note: Use thread sealant for proper installation. Thread tape is not recommended.Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.
PERFORMANCE DATA
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 4.55 | 39 | 0 | 129.0 | 39 |
| 10 | 4.18 | 40 | 1.0 | 115.6 | 41 |
| 20 | 3.96 | 42 | 2.0 | 106.5 | 45 |
| 30 | 3.74 | 45 | 3.0 | 96.6 | 47 |
| 40 | 3.50 | 46 | 4.0 | 86.4 | 50 |
| 50 | 3.25 | 48 | 5.0 | 78.4 | 53 |
| 60 | 3.00 | 50 | 6.0 | 70.8 | 58 |
| 70 | 2.83 | 52 | 7.0 | 64.0 | 57 |
| 80 | 2.60 | 55 | 8.0 | 57.5 | 54 |
| 90 | 2.46 | 59 | 9.0 | 50.6 | 52 |
| 100 | 2.28 | 57 | 10.0 | 43.7 | 50 |
| 110 | 2.12 | 55 | |||
| 120 | 1.97 | 53 | |||
| 130 | 1.80 | 52 | |||
| 140 | 1.60 | 51 | |||
| 150 | 1.48 | 49 |
* Supply Voltage: 13.8 Volts
FILL RATES
| 2.0 GALLON TANK | FILL RATE |
|---|---|
| 0 to 145 PSI | 1 min. 00 sec.(± 05 sec.) |
| 110 to 145 PSI | 20 sec. (± 03 sec.) |
| 37″ X 12.5″ | FILL RATE |
| 0 to 30 PSI | 3 min. 25 sec. (± 10 sec.) |
| 15 to 30 PSI | 1 min. 40 sec. (± 05 sec.) |
| 40″ X 15.5″ | FILL RATE |
| 0 to 30 PSI | 3 min. 35 sec. (± 10 sec.) |
| 15 to 30 PSI | 1 min. 45 sec. (± 05 sec.) |
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to
www.P65Warnings.ca.gov.
