VIAIR - Escapade Constant Duty Compact Onboard Air System
SKU 91592
$559.95
Sold out
Product Details
Brand:
Viair
UPC:
50003
For up to 37″ Tires
P/N 50003 – 110/145 PSI – 150 PSI / 1.80 CFM

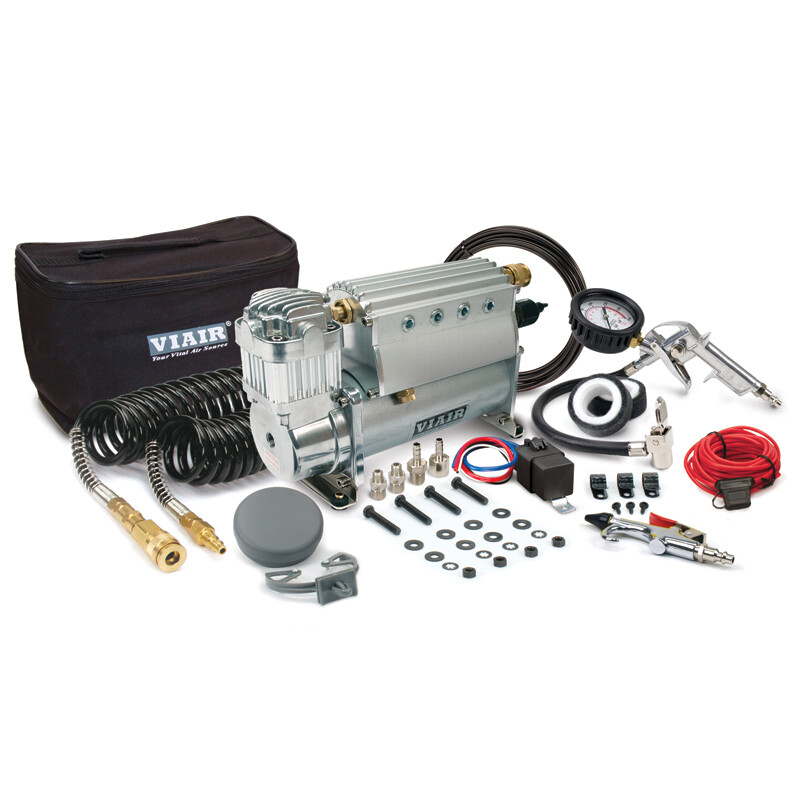

VIAIR’s Escapade Constant Duty Compact Onboard Air System is a compact, pre-packaged compressed air solution that features an industry-leading, 150PSI rated, 100% duty 450C compressor, an extruded aluminum tank, and all components needed to install a working system capable of tire inflation and air locker actuation. This OBA System comes complete with an onboard pressure switch, automatic coupler and a tire Inflation Kit.
| FEATURES |
|---|
| – 450C 150 PSI VIAIR Compressor w/ Thermal Overload Protector (1) |
| – Extruded Aluminum Air Tank (1) |
| – Sealed Pressure Switch (110 PSI on, 145 PSI off) (Pre-installed) (1) |
| – Sealed 40-Amp 4-prong Relay with pre-wired female socket (1) |
| – 40-amp Relay Sealed 4-prong relay w/pre-wired female socket (1) |
| – Tire Inflation Gun with 160 PSI Gauge (1) |
| – 30ft. Coil Hose with Quick Connect and Stud (1) |
| – Rubber Tipped Blow Gun (1) |
| – Quick Connect Coupler (Pre-installed) (1) |
| – 1/4″ 175 PSI Safety Valve (Pre-installed) (1) |
| – 1/4″ NPT Plugs Kit (Pre-installed) (1) |
| – 1/8″ Drain Cock (Pre-installed) (1) |
| – 1/4″ NPT to 1/8″ BSP Adaptors (2) |
| – Air Filter Housing w/ Replacement Air Filter Elements (1) |
| – 20ft. Freeze Resistant 12-Gauge Wire w/ Inline Fuse Holder (1) |
| SPECIFICATIONS |
|---|
| – 12-Volt |
| – Permanent Magnetic Motor |
| – Duty Cycle: 100% @ 100 PSI |
| – Max. Working Pressure: 150 PSI |
| – Max. Amp Draw: 23 Amps |
| – Ingress Protection Rating: IP67 |
| – Dimensions: 9.38″L x 4″W x 6.75″H |
| – Net Weight: 12.5 lbs. |
| – |
| – |
| – |
| – |
| – |
| – |
| – |
Please Note: Use thread sealant for proper installation. Thread tape is not recommended.
Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.
PERFORMANCE DATA
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 1.80 | 12 | 0 | 51.0 | 12 |
| 10 | 1.75 | 14 | 1.0 | 47.6 | 15 |
| 20 | 1.60 | 16 | 2.0 | 43.3 | 17 |
| 30 | 1.52 | 17 | 3.0 | 38.2 | 18 |
| 40 | 1.39 | 18 | 4.0 | 34.0 | 19 |
| 50 | 1.27 | 19 | 5.0 | 30.5 | 20 |
| 60 | 1.18 | 19 | 6.0 | 28.1 | 21 |
| 70 | 1.09 | 20 | 7.0 | 26.4 | 22 |
| 80 | 1.04 | 20 | 8.0 | 25.0 | 23 |
| 90 | 0.97 | 21 | 9.0 | 23.0 | 22 |
| 100 | 0.94 | 22 | 10.0 | 21.0 | 21 |
| 110 | 0.90 | 23 | |||
| 120 | 0.86 | 23 | |||
| 130 | 0.81 | 22 | |||
| 140 | 0.76 | 21 | |||
| 150 | 0.72 | 20 |
* Supply Voltage: 13.8 Volts
FILL RATES
| 31″ X 10.5″ | FILL RATE |
|---|---|
| 0 to 30 PSI | 4 min. 05 sec. (±10 sec.) |
| 15 to 30 PSI | 2 min. 10 sec. (±05 sec.) |
| 33″ X 12.5″ | FILL RATE |
| 0 to 30 PSI | 5 min. 30 sec. (±15 sec.) |
| 15 to 30 PSI | 2 min. 50 sec. (±05 sec.) |
| 35″ X 12.5″ | FILL RATE |
| 0 to 30 PSI | 6 min. 55 sec. (± 15 sec.) |
| 15 to 30 PSI | 3 min. 30 sec. (± 10 sec.) |
| 37″ X 12.5″ | FILL RATE |
| 0 to 30 PSI | 7 min. 56 sec. (± 15 sec.) |
| 15 to 30 PSI | 4 min. 09 sec. (± 10 sec.) |
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to
www.P65Warnings.ca.gov.
