Toytec/Bilstein Adjustable lift kit with 5100 Shocks 05-15 Tacoma

SKU 00129
$856.96
Special Order
Front Shocks
Front Springs
Assemble front struts with new top mounts
Add Top Plate Spacer Kit
Driver Side Top Spacer
Diff Drop
Rear Lift
Rear Shocks
Front bump stops
Out of stock at our main facility, available for back-order or Built to Order (or will ship from alternate warehouse or from the manufacturer if applicable)
1
Product Details
Brand: Toytec/Bilstein
Vehicle: 05-15 Tacoma
Shipping Notes: this kit will ship from manufacturer

Product Description

Bilstein Adjustable lift kit with 5100 shocks
  • 1.5" or 3" lift kit with Toytec/Eibach front coils (3" average lift is achieved with coils and setting the shock adjustment on the second C clip setting from the bottom)
  • Standard cab and 4cyl models should use the Lowest C Clip setting
  • DO NOT EXCEED THIS SETTING OR DAMAGE CAN OCCUR
  • Double cab models may require top plate spacers for full 3" lift

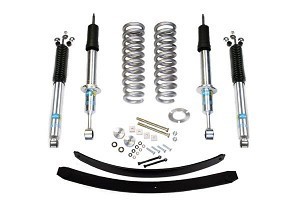

Includes:

  • C477 Height adjustable Bilstein front 5100 series shocks
  • TP14 spacer for correction of drivers side lean
  • 112-620 Eibach/Toytec front coil springs 620lb spring rate
  • TAC-DR-05 Front diff drop kit (choose from options)
  • C476 - Bilstein 5100 series rear shocks

Rear Options:

  • Choose below:
    • TAC-AL Toytec standard 2" lift add-a-leafs with anti friction pads. This long style AAL offers a great ride and has anti-friction pads already installed. Fits standard 3 leaf springs and 4 leaf or TSB springs.
    • 1 1/2" blocks with U-bolts
    • 1" blocks with U-bolts
**Choose to have your coilovers assembled with new top mounts and hardware.

Assembly notes:
  • Typical ride heights achieved:
On a 6 cyl Access or Double Cab -
  • 1st clip setting - Approximately 1.5"
  • 2nd clip setting - Approximately 3"
    • Some Double cab models may require top plate spacers for full 3" lift
On a 4 cyl or Standard Cab -
  • 1st clip setting - Approximately 3"
