Radflo Suspension 500R Sport Kit - (03-24 Toyota 4Runner, FJ Cruiser, GX470, GX460)

Product Description

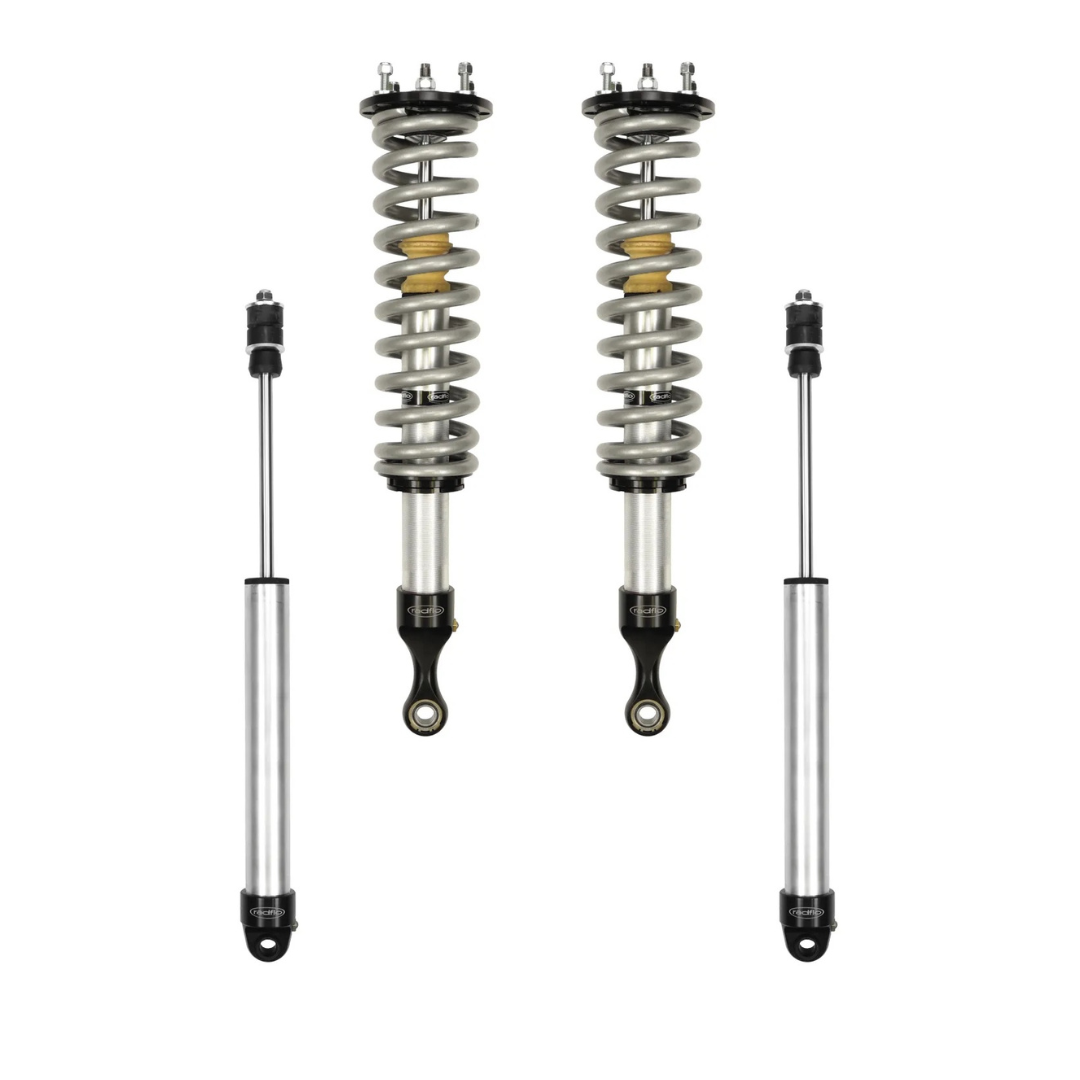

Radflo 500R complete suspension kit with coilovers, shocks and rear springs

• Introducing the all new Radflo 500R Sport Series product line! The 5000R Sport shocks have an all new design and fit the lower price profile for customers that are looking to upgrade a step above factory shocks.

  About the 500R Sport Series
  Combining longevity, performance and comfort, the 500R Sport Series uses race-proven and time-tested technology in a OE replacement, bolt-on package. Tuned to your specific vehicle application; reduces body roll while increasing control and comfort.

  On or off road, cruising the streets or hammering the trails; our monotube shock utilizes a high flow main piston and internal floating piston (IFP) to ensure consistent performance.

  100% bolt-on, serviceable, ride-height adjustable and re-tunable; the 500R Sport Series fits right into stock or lift mounts, ready to take a beating over and over again.

  IFP
  Push harder, go further.
  An internal floating piston (IFP) separates the oil and gas chambers, eliminating shock fade and allowing for consistent performance.

  RST High Performance - Foam Resistant Suspension Fluid keeps working hard even when temperatures rise, giving you the confidence to drive further and go faster.

  Valving
  Our CNC Machined - 6061 T6 Aluminum - 2.0 FreeFlo piston allows for maximum oil flow through the application-specific velocity-sensitive valving, increasing vehicle comfort and control both on and off road. Street, trail, and desert tested; ready to excel no matter where you drive.
  More Flow = More Comfort = More Control

  Hydraulic Droop Stop
  RST Hydro Droop Stop carries over technology used in our highest level of offroad motorsport dampers.

  A secondary piston engages at the very end of the rebound stroke, reducing the forces the damper experiences during full droop events; virtually eliminates harsh top-out noise.

  Fitment
  Our 100% bolt-on shocks fit right into stock or lift mounts and retain stock hardware. Attractive yet functional new styling provides more clearance between the damper and suspension/steering parts, allowing for larger wheels and tires without changing stock offset.

  OEM Style Rubber Bushings reduce noise, vibration, and harshness (NVH) transmitted through the suspension while resisting corrosion.

  Post, eyelet, bar pin, and clevis mounting options are available per application.

  Springs
  RST 3.00’’ I.D. Race Springs with rates tuned per vehicle application; designed to level and lift your vehicle out of the box.

  Application-specific spring retainer and top mount utilize a composite isolator to dampen road NVH translated through metal-on-metal spring connections. A threaded, adjustable spring seat allows for quick and easy ride height changes.

  Durability
  3 Stage Redundant Seal Cap, SSID Steel Housing, and large ⅝’’ Chrome-Plated stainless Steel Shaft maintains durability and resists dents, knicks, and chips. OEM Grade Rubber Bushings, 6061 T6 Aluminum CNC Machined Parts, Type II Hard Anodizing, and Cadmium (CAD) plating stand up to real-world abuse and offer unparalleled corrosion resistance.

  Affordability
  Front Coil-Overs: $560 each - $1120 per pair
  Rear Shocks: $245 each - $490 per pair

  Every 500R Sport Series Damper is fully rebuildable, giving it a virtually unlimited lifetime.

System Contents:

• Radflo 500R Sport 2.0 Front Coilovers
• Radflo 500R Sport 2.0 Rear Shocks

Front Bump Stop Option:

• DuroBumps are proudly made in the USA with dual durometer (hardness) rubber that provides smooth progressive dampening and greatly reduces hard bottom outs. This allows for more control and comfort compared to OEM bump stops that are harsh on contact. With DuroBumps installed, the shell-shock effect experienced when hitting the OEM bump stops is completely eliminated.

Rear Bump Stop Options:

• Comes with Toytec Rear Bump Stop Drop kit - Designed to work with the Superflex rear coils allowing your rear bump stops to function properly protecting your rear shocks from damage and keeping the rear tires from hitting the fender well.
• Upgrade to DuroBumps - DuroBumps 4.25″ rear bump stops are intended for vehicles that have rear lifts of 2″. Its heavy-duty Dual Durometer Rubber provides smooth progressive dampening and greatly reduces hard bottom outs. With DuroBumps, gain better off road control and comfort vs the harsh-on-contact OEM bump stops and eliminate the shell-shock effect experienced on hitting those larger bumps.

• Toytec Rear Superflex Coils: - Our suspension kits come standard with Toytec RCC2.0 rear springs- These springs offer 2" of lift with stock rear weight with the best overall ride quality and rear articulation.
• Optional HD Rear Superflex coils offer additional weight capacity. Recommended 150-200 lbs of constant load for 2" of lift.
• Dobinsons 2" Options with different load ratings to meet your needs

Upper Control Arms to complete your kit:

• Freedom Offroad Upper Control Arms - heavy duty oem style ball joints and hardened rubber bushings
• SPC Adjustable Upper Control Arms - The most adjustable UCA on the market that help with adjusting for tire clearance and correct your alignment angles.
• Total Chaos Upper Control Arms - includes 1" I.D. uniballs that feature a heat treated stainless steel ball & heat treated stainless steel race for maximum corrosion resistance and component longevity. These uniball's also features a military grade PTFE woven fabric liner that helps prevent noise. combined with extended length coil over shocks will allow for up to 1" of additional wheel travel.
