Product Details
Brand: Come Up Winch
UPC: 295053

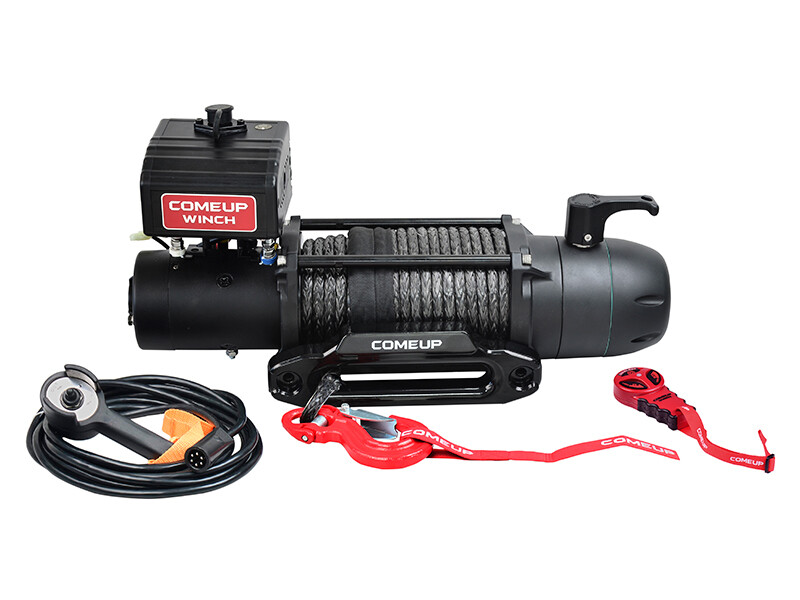

4.3 Tonnes Severe Duty Winch
12V DC severe duty winch rated at 9,500 lbs pulling meets or exceeds your expectations.
Heavy duty series wound motor delivers superior torque output and faster line speed. A motor equipped with a thermal protection switch
New clutch lever kit is easy to engage and disengaged. 16 equally positioned pin holes to ensure seamless clutch transmission and make it easily rotate by 22.5-degree increments.
Hardened steel, 3-stage planetary gear train for efficient and reliable operation.
Cutout switch prevents the vehicle battery from draining when no use.
Both built-in digital two way wireless remote control and wired water-proof remote control.
12 strand construction synthetic rope coated to improve abrasion resistance.
Tough aluminum die cast housings withstand strength of 2.0 x rated load of winch.
U.S. Germany, U.K. France, etc patented mechanical cone brake holds the full load
Part number: PN 295053 (12V)
Rated line pull: 4,309 kg / 9,500 lb single line
Line speed ( 1st layer): 14.8 mpm / 48.6 fpm 60 A at 12V no load 2.2 mpm / 7.2 fpm 380 A at 12V full load
Motor: 3,730 w / 5.0 hp 12V series wound
Gear ratio: 3-stage planetary 159:1
Clutch (freespooling): Rotating ring gear
Brake (outside the drum): Automatic, full load CBS (Cone Brake Structure)
Winch construction: Aluminum die cast housings with steel drum
Drum size: 63.5 mm x 227L mm (2.5” x 8.9”L)
Control: Both built-in digital signal two way wireless remote control and waterproof remote with thermometric indicator LED w/ 5 m (17') cord
Rope type: Synthetic rope
Rope size: 10 mm x 30.5 m (3/8” x 100’)
Mounting bolt pattern: 254 mm x 114 mm (10” x 4.5”)
Mounting : Foot forward or foot down mounting workable
