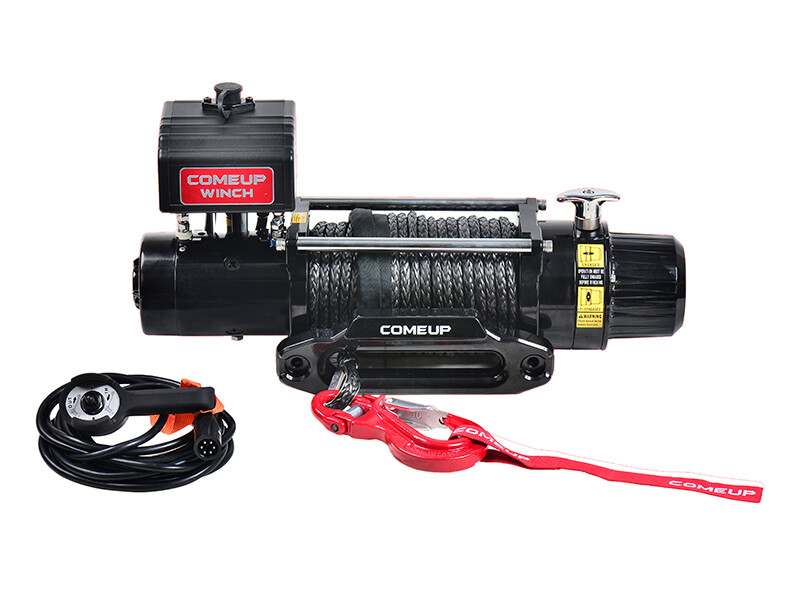

Come Up Winch - DV-9s

9,000 lb Self- Recovery Winch

• Reliable electric winch for working and playing in offroad environments.
• 3,430w/12V or 1,940w/24V series wound motor.
• 9 equally positioned pin holes with an ergonomic T-handle make it possible to reposition in 40 degree Increments.
• Hardened steel, 3-stage planetary gear train for efficient and reliable operation.
• 12 strand construction synthetic rope, coated to improve abrasion resistance and to protect from the ingress of dirt and grit.
• Water-proof remote control with thermometric LED indicator alerts when the motor is over-heated.
• U.S. Germany, U.K. France, etc patented mechanical cone brake holds the full load without slipping.
• Submersible sealed contactor handles high amps and allows higher duty cycle.
• Part number: PN 859252 (12V) / PN 859262 (24V)
• Rated line pull: 4,082 kg / 9,000 lb single line
• Motor: 3,430 w / 4.6 hp 12V series wound
  1,940 w / 2.6 hp 24V series wound
• Gear train: 3-stage planetary 156:1
• Clutch (freespooling): Rotating ring gear
• Brake (outside the drum): Automatic, full load CBS (Cone Brake Structure)
• Winch construction: Aluminum die cast housings with steel drum
• Drum size: 63.5 mm x 227L mm (2.5” x 8.9”L)
• Control: Waterproof remote with thermometric indicator LED w/ 5 m (17') cord
• Rope type: Synthetic rope
• Rope size: 10 mm x 30.5 m (3/8” x 100’)
• Mounting bolt pattern: 254 mm x 114 mm (10” x 4.5”)
