C4 - Tacoma Overland Series Front Bumper / 2nd Gen / 2005-2015
SKU 91301
$1,279.25
Built to Order
was$1,505.00
Save
$225.75
Light Bar Cutout
Bull Bar Options
LED Light Bar
Wiring Harness
Fog Lights
Fog Light Pattern
Fog Light Lens Color
Hawse License Plate Mount
Winch
Shipping Options
Out of stock at our main facility, available for back-order or Built to Order (or will ship from alternate warehouse or from the manufacturer if applicable)
1
Product Details
Made in: USA
Brand: C4 Fabrication
UPC: 1200-3105-30-
Lead Time (Contact us if you have questions): ships within 10 weeks
Shipping Notes: this item is made to order and will ship from the manufacturer

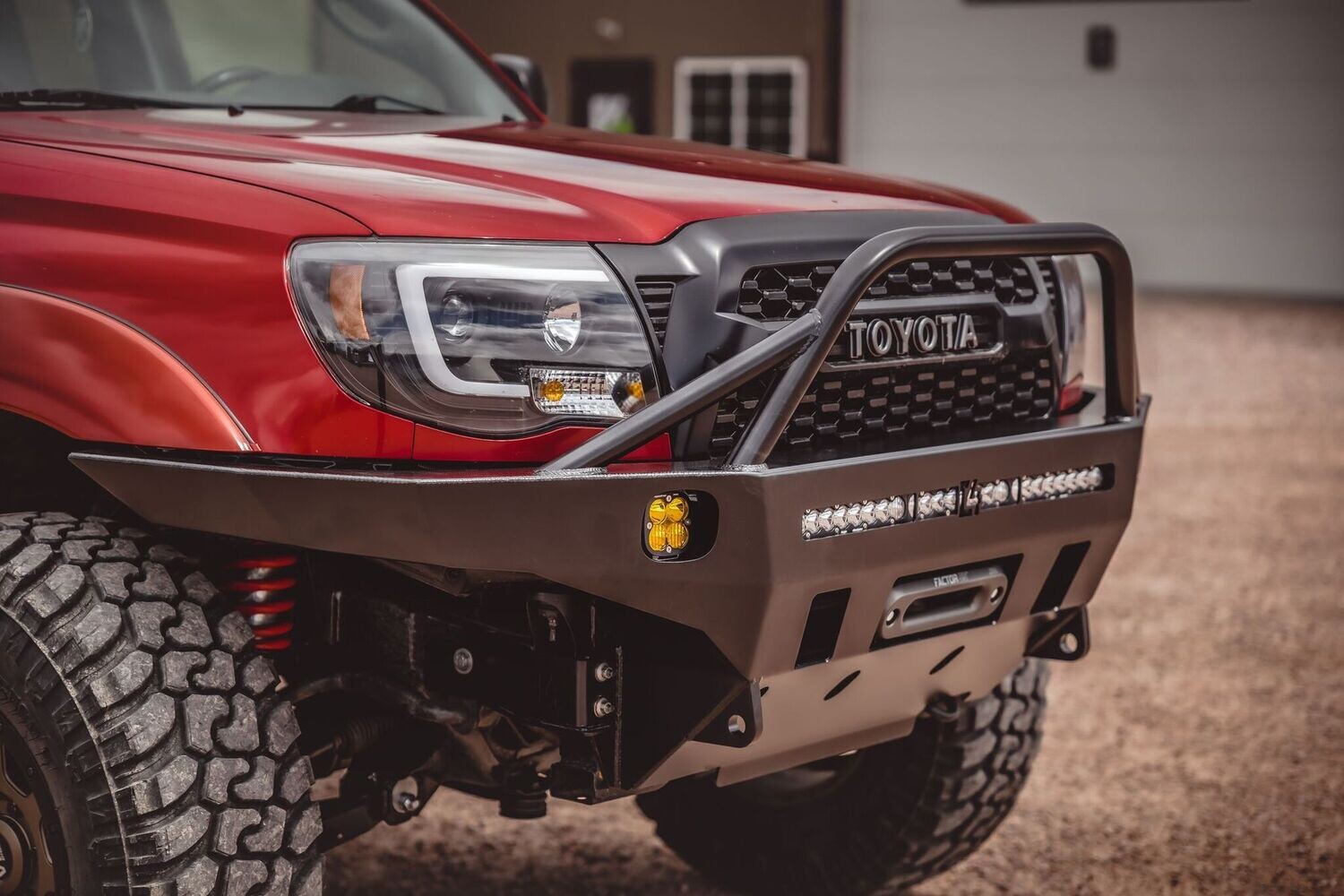

C4 - Tacoma Overland Series Front Bumper / 2nd Gen / 2005-2015
100% bolt on design, no welding required. (some minor trimming required on 2012-2015 models)
Bumper offers greatly improved tire clearance, better approach angle and makes it easier to fit larger tires.
Bumper is made from 3/16″ laser cut P&O steel with 1/4″ thick mounting plates.
3/4″ thick D-Ring tabs standard on every bumper and come fully welded front and back.
Bull bar tubing is .120 wall 1 3/4″ diameter HREW tubing.
Fits most winches 8k-12k in size. Winches with the ability to relocate the electrical control box are recommended. Integrated control box winches may require some trimming of the grille support brackets to fit.(ComeUp, Smittybilt X20, Warn Zeon and VR series are all common winches that fit).
We recommend using winches with synthetic rope and a hawse style fairlead for the best fitment and functionality. Some roller fairleads may be too large to fit the recessed fairlead mounting plate in the bumper.
125lbs without bull bar, 130lbs with mid height bull bar, 140lbs with full height bull bar, 145lbs with full height bull bar and headlight hoops.
Bumper is designed to fit 30″ single row light bars (specifically designed for Baja Designs S8 light bar). Extreme LED 30″ 5D light bar and RIGID 30″ SR series, will also fit.
Fog light pockets designed for Baja Designs Squadron lights. (Factory fog lights not supported)
SHIPS BARE STEEL, C4 does not offer powder coating services. Bumper will need to be painted or powder coated before installation to prevent rust. Contact APEX OVERLAND and we will coordinate powdercoating for installed parts.
Additional Front Bumper Frame Support Brackets included with all 2nd gen Tacoma Hybrid front bumpers! ($129.00 value).
