C4 - Tacoma Hybrid Front Bumper / 2nd Gen / 2005-2011 or 2012-2015
SKU 91302
$1,403.00
Built to Order
Model Year
Light Bar Cutout
Bull Bar Options
LED Light Bar
Wiring Harness
Fog Lights (1st Pair)
Fog Light Pattern (1st Pair)
Fog Light Lens Color (1st Pair)
Fog Lights (2nd Pair)
Fog Light Pattern/Color (2nd Pair)
Hawse License Plate Mount
Winch
Shipping Options
Out of stock at our main facility, available for back-order or Built to Order (or will ship from alternate warehouse or from the manufacturer if applicable)
1
Product Details
Made in: USA
Brand: C4 Fabrication
UPC: 1200-3212-30-
Lead Time (Contact us if you have questions): ships within 10 weeks
Shipping Notes: this item is made to order and will ship from the manufacturer, we may have some in stock for pickup at Apex Overland

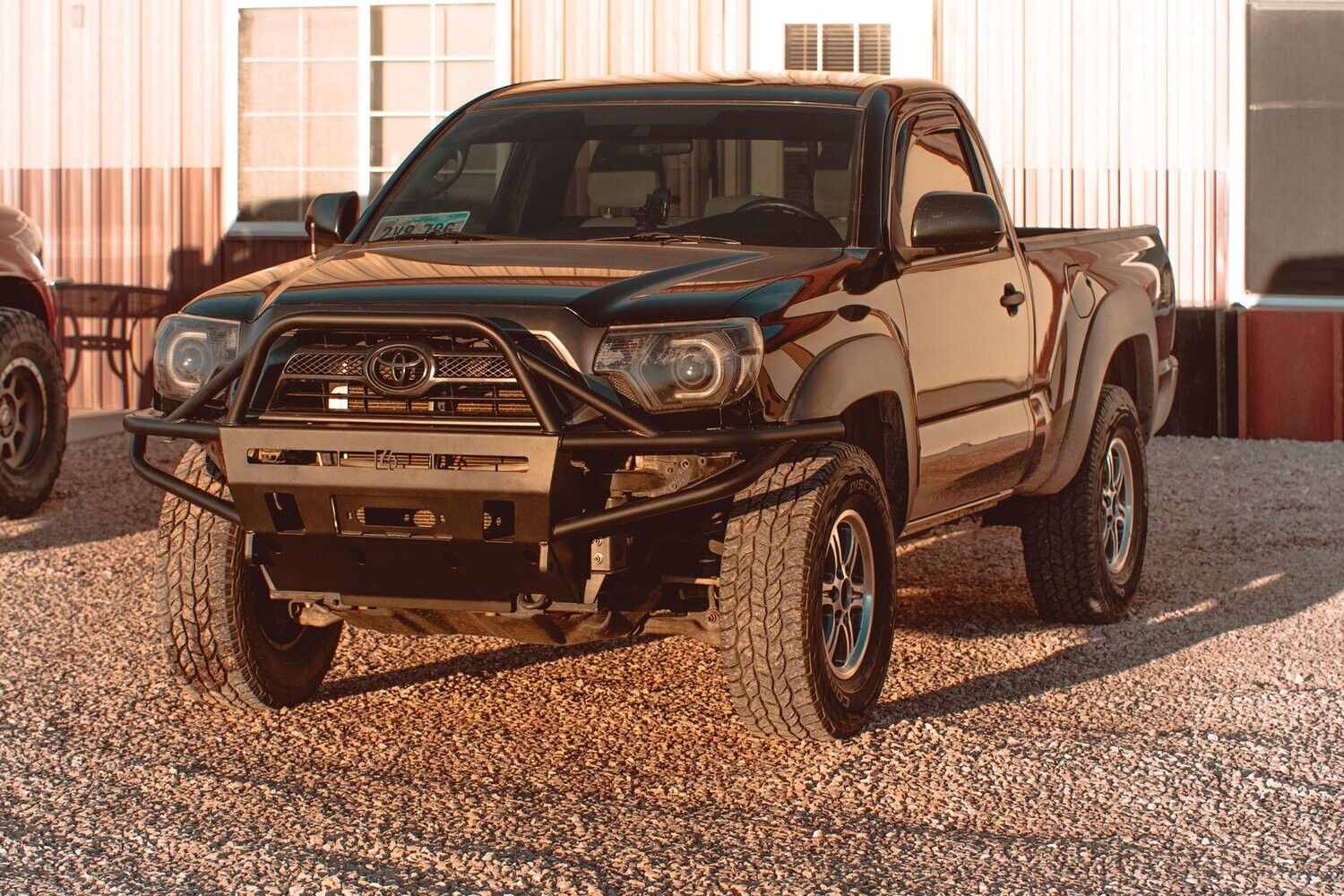

2005-2011 Tacoma Hybrid Bumper
Straightforward installation, 100% bolt on bumper, no cutting or welding of any kind required.
All bumpers are winch compatible.
Bumper has cutouts in the front to allow access to winch rope and clutch lever.
Fits most winches 8k-12k in size. Winches with the ability to relocate the electrical control box are recommended. Integrated control box winches may require some trimming of the grille support brackets to fit.(ComeUp, Smittybilt X20, Warn Zeon and VR series are all common winches that fit).
We recommend using winches with synthetic rope and a hawse style fairlead for the best fitment and functionality. Some roller fairleads may be too large to fit the recessed fairlead mounting plate in the bumper.
Bumper winch plate and mounting plates are 1/4″ thick steel. Bumper main body is 3/16″ thick steel. Tubing is all 1 3/4″ OD, 1/8″ wall thickness.
3/4″ thick D-ring tabs fully welded front and back come standard.
Bumper without Bull Bar weighs 125lbs. Bumper with Mid-Height Bull Bar weighs 130 lbs. Bumper with Full Height Bull Bar and side tube gussets weighs 137 lbs.
Bumper is designed to fit 30″ single row light bars (specifically designed for Baja Designs S8 light bar). Extreme LED 30″ 5D light bar and RIGID 30″ SR series, will also fit.
If you have ordered an Extreme X6S 30" Amber/White light bar from us with your bumper you will receive a pair of mounting brackets to use for mounting the light into the bumper which will allow it to fit properly. If you did NOT order a 30" X6S light bar from us and you are planning to install one, you will need to purchase these mounting brackets in order to install the light properly: Click here for brackets
Additional Front Bumper Frame Support Brackets included with all 2nd gen Tacoma Hybrid front bumpers! ($129.00 value).
SHIPS BARE STEEL, C4 does not offer powder coating services. Bumper will need to be painted or powder coated before installation to prevent rust. Contact APEX OVERLAND and we will coordinate powdercoating for installed parts.
