Apex Overland OVERLANDER Suspension Package - 03-24 4Runner/GX/FJ

The Apex Overland Packages are designed for those just getting into the hobby of overland and off-road and need a one stop shop for their:

2003+ Toyota 4Runner (yes this applies to KDSS equipped vehicles too!)
2007+ FJ Cruiser
2004+ GX470 (additional cost includes rear spring conversion)
2010+ GX460 (additional cost includes rear spring conversion)

Apex Overland also offers expert installation for all of our packages. For those not local to Apex Overland, we offer package discounts and can ship to your door! Just contact us and we can help you plan your build

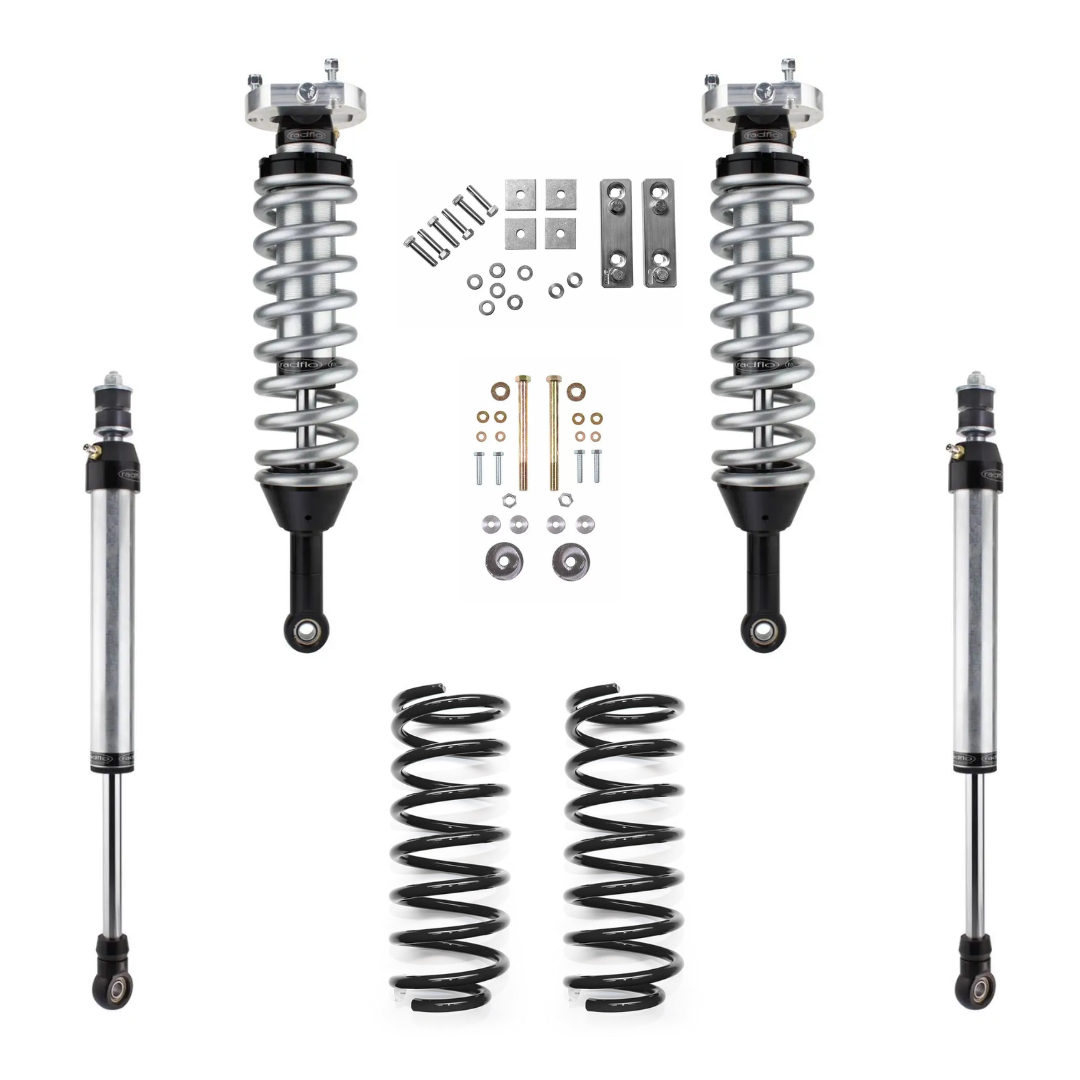

Our Overland Package will include the Radflo Suspension 2.0 system paired with Upper control arms:

Front Lift/Coilovers:

• Radflo 2.0" Diameter Front Coilover Kit

  • All Radflo OE Replacement Shocks are custom built-to-order in the USA, and uniquely valved to meet you and your vehicle's unique needs and specifications.
  • Front Coilovers are adjustable from 0-2" of lift, and extended travel are adjustable 0-2.5"
  • Nitrogen charged design with internal floating piston to help prevent shock fading and cavitation.
  • Anodized Aluminum Material and Finish
  • Shocks are fully rebuildable and factory serviceable
  • The kit includes sway bar relocation brackets(for non-KDSS),
  • This kit is KDSS Compatible
  • Also Included: Front Differential Drop kit - Recommended for all lifted 4x4s

Front Bump Stop Option:

• You opt to upgrade your front bump stops to DuroBumps. These are proudly made in the USA with dual durometer (hardness) rubber that provides smooth progressive dampening and greatly reduces hard bottom outs. This allows for more control and comfort compared to OEM bump stops that are harsh on contact. With DuroBumps installed, the shell-shock effect experienced when hitting the OEM bump stops is completely eliminated.

Rear Bump Stop Options:

• Toytec Rear Bump Stop Drop kit - Designed to work with lifted rear coils allowing your rear bump stops to function properly protecting your rear shocks from damage and keeping the rear tires from hitting the fenderwell.
• DuroBumps - DuroBumps 4.25″ rear bump stops are intended for vehicles that have rear lifts of 2″. Its heavy-duty Dual Durometer Rubber provides smooth progressive dampening and greatly reduces hard bottom outs. With DuroBumps, gain better off road control and comfort vs the harsh-on-contact OEM bump stops and eliminate the shell-shock effect experienced on hitting those larger bumps.

• Toytec Rear Superflex Coils: - Our suspension kits come standard with Toytec RCC2.0 rear springs- These springs offer 2" of lift with stock rear weight with the best overall ride quality and rear articulation.
• Optional HD Rear Superflex coils offer additional weight capacity. Recommended 150-200 lbs of constant load for 2-2.5" of lift.

Rear Shocks:

• Radflo 2.5" Diameter rear shocks with Internal Floating Piston
  • Shock bodies are hard-anodized aluminum for cooler operation and longer lasting in the elements.
  • Self Adjusting valving
  • Nitrogen charged

Upper Control Arms to complete your kit:

• Freedom Offroad Upper Control Arms - heavy duty oem style ball joints and hardened rubber bushings
• Total Chaos Urethane Bushing PIvot Uniball UCA - designed to add 3 degrees of caster - offering better straight line tracking, as well as improved high speed stability and cornering. TC UCA's are designed to provide 1'' of added droop wheel travel when they are installed with a pair of factory replacement ''extended travel'' coil over shocks.

Lighting Options

CaliRaised Low Pro Ditch-light Package (with Side Shooter Pods) with Install
Baja Designs SAE Fog Lights with Install (4Runner, Tacoma Only)
CaliRaised | 2014-2021 TOYOTA 4RUNNER 32" HIDDEN GRILLE LED LIGHT BAR BRACKETS KIT (4Runner Only) Includes brackets and 2 light bars with installation

Additional Options
