Apex Overland OVERLANDER PLUS Suspension Package - 03-24 4Runner/FJ/GX

The Apex Overland Overlander Packages are designed for those needing a little more performance out of their vehicles in the hobby of overland and off-road and need a one stop shop for their:

2003+ Toyota 4Runner
2007+ FJ Cruiser
2004+ GX470 (additional cost includes rear spring conversion)
2010+GX460 (additional cost includes rear spring conversion)

Apex Overland also offers expert installation for all of our packages. For those not local to Apex Overland, we offer FREE SHIPPING to your door for our packages. Contact us for package discounts!

Our Overlander Plus Suspension Package will include the Radflo 2.5 Suspension system paired with Upper control arms, with optional add ons.

Package Includes:

• Radflo 2.5" Diameter Extended Travel Front Coilover Kit
  • All Radflo OE Replacement Shocks are custom built-to-order in the USA, and uniquely valved to meet you and your vehicle's unique needs and specifications.
  • Front Coilovers are adjustable from 0-3" of lift
  • Nitrogen charged design with internal floating piston to help prevent shock fading and cavitation.
  • Anodized Aluminum Material and Finish
  • Shocks are fully rebuildable and factory serviceable
  • The kit includes sway bar relocation brackets(for non-KDSS), and C-Spanner wrench adjustment tool.
  • Also Included: Front Differential Drop kit - Recommended for all lifted 4x4s

Front Bump Stop Option:

• DuroBumps are proudly made in the USA with dual durometer (hardness) rubber that provides smooth progressive dampening and greatly reduces hard bottom outs. This allows for more control and comfort compared to OEM bump stops that are harsh on contact. With DuroBumps installed, the shell-shock effect experienced when hitting the OEM bump stops is completely eliminated.

Rear Bump Stop Options:

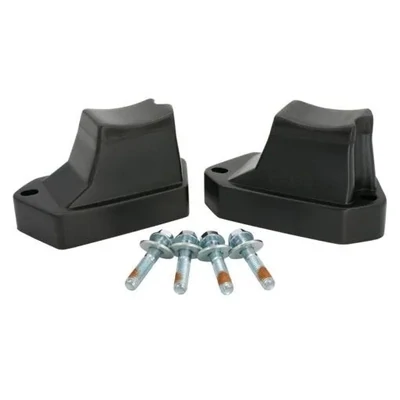

• Comes with Toytec Rear Bump Stop Drop kit - Designed to work with the Superflex rear coils allowing your rear bump stops to function properly protecting your rear shocks from damage and keeping the rear tires from hitting the fender well.
• Upgrade to DuroBumps - DuroBumps 4.25″ rear bump stops are intended for vehicles that have rear lifts of 2″. Its heavy-duty Dual Durometer Rubber provides smooth progressive dampening and greatly reduces hard bottom outs. With DuroBumps, gain better off road control and comfort vs the harsh-on-contact OEM bump stops and eliminate the shell-shock effect experienced on hitting those larger bumps.

• Toytec Rear Superflex Coils: - Our suspension kits come standard with Toytec RCC2.0 rear springs- These springs offer 2" of lift with stock rear weight with the best overall ride quality and rear articulation.
• Optional Rear Superflex HD coils offer additional weight capacity. Recommended 150-200 lbs of constant load for 2-2.5" of lift.
• Optional Rear Dobinsons HD coils for a higher constand load in the rear, or rear bumper.

Rear Shocks:

• Radflo 2.5" Diameter rear shocks with Internal Floating Piston
  • Shock bodies are hard-anodized aluminum for cooler operation and longer lasting in the elements.
  • Self Adjusting valving
  • Nitrogen charged

Upper Control Arms to complete your kit:

• Freedom Offroad Upper Control Arms - heavy duty oem style ball joints and hardened rubber bushings
• Total Chaos Upper Control Arms - includes 1" I.D. uniballs that feature a heat treated stainless steel ball & heat treated stainless steel race for maximum corrosion resistance and component longevity. These uniball's also features a military grade PTFE woven fabric liner that helps prevent noise. combined with extended length coil over shocks will allow for up to 1" of additional wheel travel.

Lighting Options

CaliRaised Low Pro Ditch-light Package with Install
Baja Designs SAE Fog Lights with Install (4Runner, Tacoma Only)
Cali Raised | 2014-2021 TOYOTA 4RUNNER 32" HIDDEN GRILLE LED LIGHT BAR BRACKETS KIT (4Runner Only) Includes brackets and 2 lightbars with installation

Additional Options
