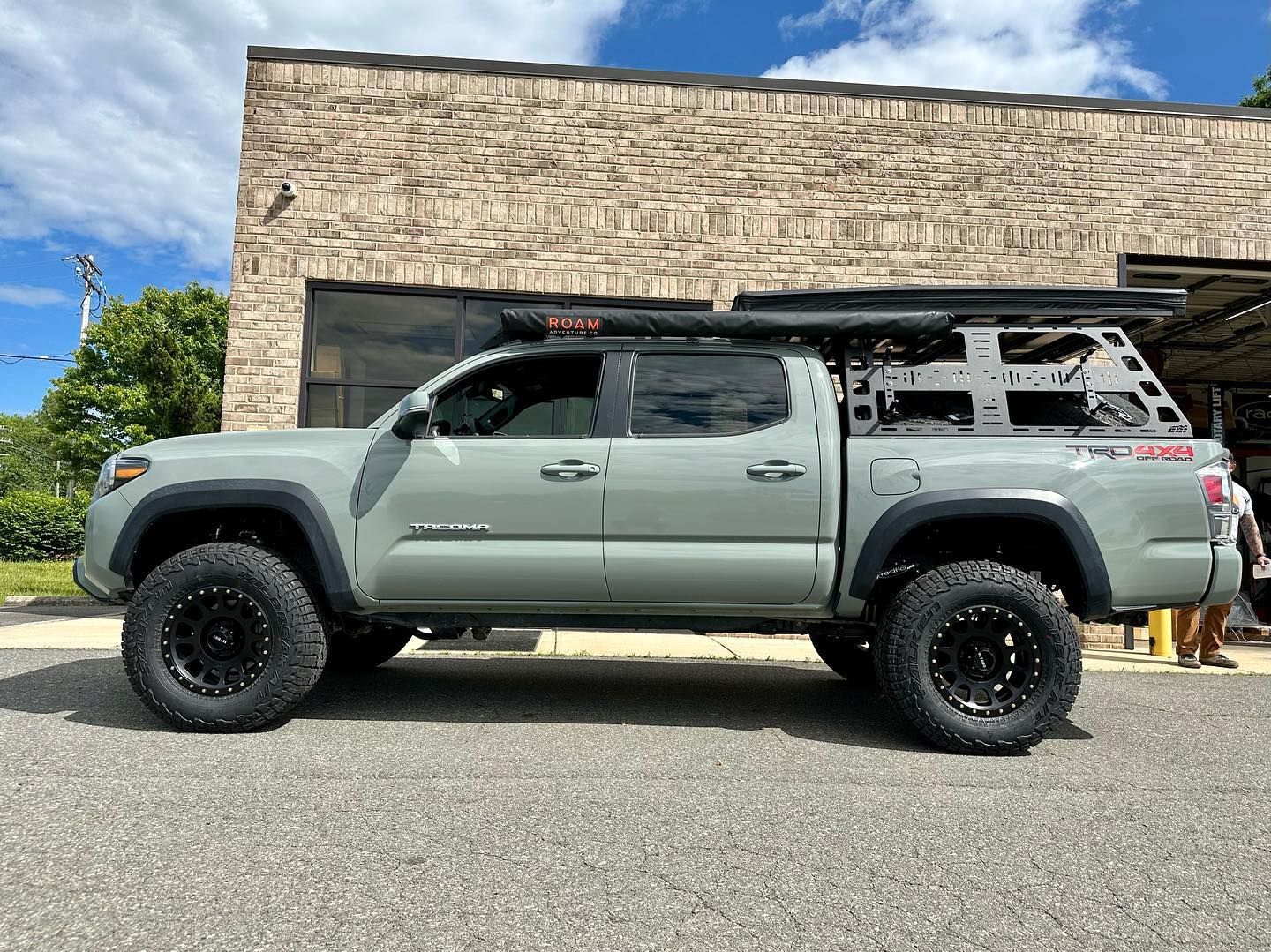

Apex Overland ADVENTURER Suspension Package with Radflo Suspension - Tacoma (05-23)

The Apex Overland ADVENTURER Packages are designed for those needing a little more performance out of their vehicles in the hobby of overland and off-road and need a one stop shop for their:

2005-2023 Tacoma

Apex Overland also offers expert installation for all of our packages. For those not local to Apex Overland, we offer discounts for bundles. Contact us for package discounts!

Our System will include the Radflo 2.5 Suspension system paired with Upper control arms, with optional add ons.

• Radflo 2.5" Diameter Front Coilover Kit with Remote Reservoirs
  • All Radflo OE Replacement Shocks are custom built-to-order in the USA, and uniquely valved to meet you and your vehicle's unique needs and specifications.
  • Front Coilovers are adjustable from 0-2" of lift, and extended travel are adjustable 0-2.5"
  • Nitrogen charged design with internal floating piston to help prevent shock fading and cavitation.
  • Anodized Aluminum Material and Finish
  • Shocks are fully rebuildable and factory serviceable
  • The kit includes sway bar relocation brackets.
  • Also Included: Front Differential Drop kit - Recommended for all lifted 4x4s

Front Bump Stop Option:

• DuroBumps are proudly made in the USA with dual durometer (hardness) rubber that provides smooth progressive dampening and greatly reduces hard bottom outs. This allows for more control and comfort compared to OEM bump stops that are harsh on contact. With DuroBumps installed, the shell-shock effect experienced when hitting the OEM bump stops is completely eliminated.

Ubolts: Standard 7.5" ubolts.

Rear Bump Stops:

• 0-2" of lift, no bump stop drop needed
• 3" of lift - Rear Bump Stop Extension kit - 43007 - Recommended for use with add-a-leafs or complete leaf spring packs, these will allow your factory rear bump stops to function with the lift. (*Requires drilling 2 holes per side).
• Durobumps - Tacoma rear bump stops eliminate the shell shock effect we’re all familiar with when hitting OEM bump stops. Our dual durometer bump stops easily absorb hard impacts and help keep the vehicle stable at higher speeds in rough conditions. The 4.25″ rear bump stop is intended for trucks with a rear lift of 2″ and extended shocks of up to 1″. These bump stops have been designed to stop wheel up travel under articulation prior to extended shocks bottoming out. Can be used with or without the Ubolt flip kit.

Rear Lift Options:

• Toytec Add-A-Leafs. - Approximately 1.5-2" lift. This long style AAL offers a great ride and has anti-friction pads already installed. Fits standard 3 leaf springs and 4 leaf or TSB springs.
• Toytec Progressive Leaf Pack - Designed and produced to the highest standards. Spring retaining clamps on both ends keeps the pack centered.Anti-friction pads on both ends reduce any noises.This is the best riding AAL on the market.**Use with your stock overload for about 2.5” of rear lift and extra rear weight. May be used without the factory overload for best ride quality and about 2” of rear lift. **
• Toytec Boss Leaf Springs - 2" lift - These rear springs offering soft ride leaf spring for maximum flex and articulation. 10 leaf design for the best ride comfort and articulation.Tapered diamond cut ends provide less stress for longer spring life. Comes with high quality urethane bushings already installed.
• Dobinsons Full Leaf Pack Replacement (for heavier duty loads and gear)
  • L59-110-R - (55mm/2.1") Up to 220lb Load
  • L59-111-R - (55mm/2.1") 600lb Load
  • L59-112-R - (55mm/2.1") 800lb Load

Rear Shocks:

• Radflo 2.5" Diameter rear shocks with Remote Reservoirs
  • Shock bodies are hard-anodized aluminum for cooler operation and longer lasting in the elements.
  • Self Adjusting valving
  • Nitrogen charged

Upper Control Arms to complete your kit:

• Total Chaos Upper Control Arms - includes 1" I.D. uniballs that feature a heat treated stainless steel ball & heat treated stainless steel race for maximum corrosion resistance and component longevity. These uniball's also features a military grade PTFE woven fabric liner that helps prevent noise. combined with extended length coil over shocks will allow for up to 1" of additional wheel travel.

Lighting Options

CaliRaised Low Pro Ditch-light Package with Install
Baja Designs SAE Fog Lights with Install (4Runner, Tacoma Only)

Additional Options

Front High Clearance Cut
Rad Rubber Engine Splash Guards
Factor 55 Hitchlink 2.0
Maxtrax (Color options vary)
Snorkel (Dobinsons) 16+ Tacoma
